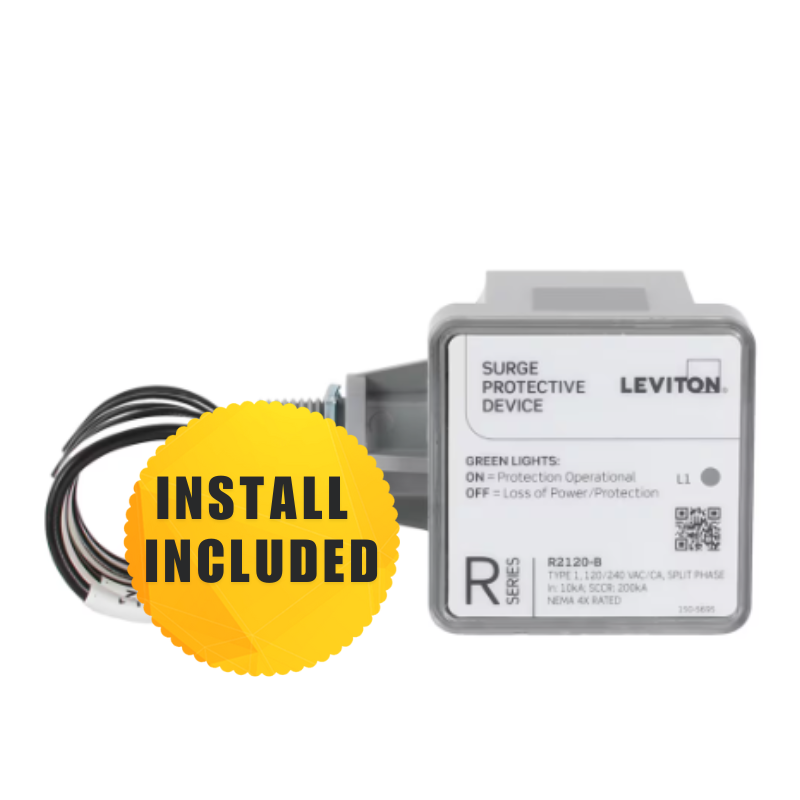

Leviton R2120-B Type 1 Surge Protective Device – 36kA | 120/240V Split Phase
Safeguard your home’s electrical system with the Leviton R2120-B, a Type 1 surge protective device designed for residential applications. This compact, panel-mounted SPD diverts damaging voltage transients away from your electronics, ensuring long-term protection against power surges. Its NEMA 4X rated enclosure allows for both indoor and outdoor installations, providing flexibility and durability. With compliance to UL 1449 5th Edition and the 2023 NEC Article 230.67 requirements, it’s a reliable choice for whole-home surge protection.
Key Specifications:
-
Surge Current Rating: 36kA per phase (18kA per mode)
-
Voltage: 120/240V AC, Split Phase
-
Short Circuit Current Rating (SCCR): 200kA
-
Nominal Discharge Current (In): 10kA
-
Voltage Protection Rating (VPR): L-N: 700V, L-L: 1200V
-
Maximum Continuous Operating Voltage (MCOV): 180V L-N / 360V L-L
-
Enclosure: NEMA 4X rated, suitable for indoor/outdoor use
-
Connection Type: #14 AWG leads, 18” length
-
Indicator: LED status monitoring
-
Certifications: UL 1449 5th Edition, CSA C22.2 No. 269.1-17
Enhance your home’s electrical safety by integrating the Leviton R2120-B into your system. For added value, consider bundling this surge protector with our electrical panel upgrade packages at a discounted rate. Contact us for more details on bundle pricing.
