IYILO 48A Level 2 EV Charger + Professional Installation
The IYILO IYILO-RA48 is one of the most feature-rich Level 2 EV chargers available — and Power Blitz Electrical handles the complete installation so your charger is up and running safely from day one.
What’s Included

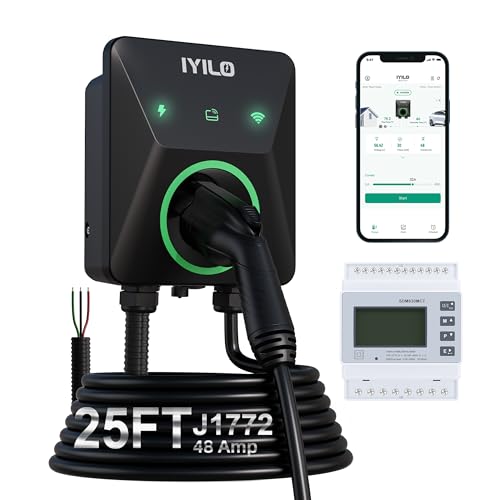

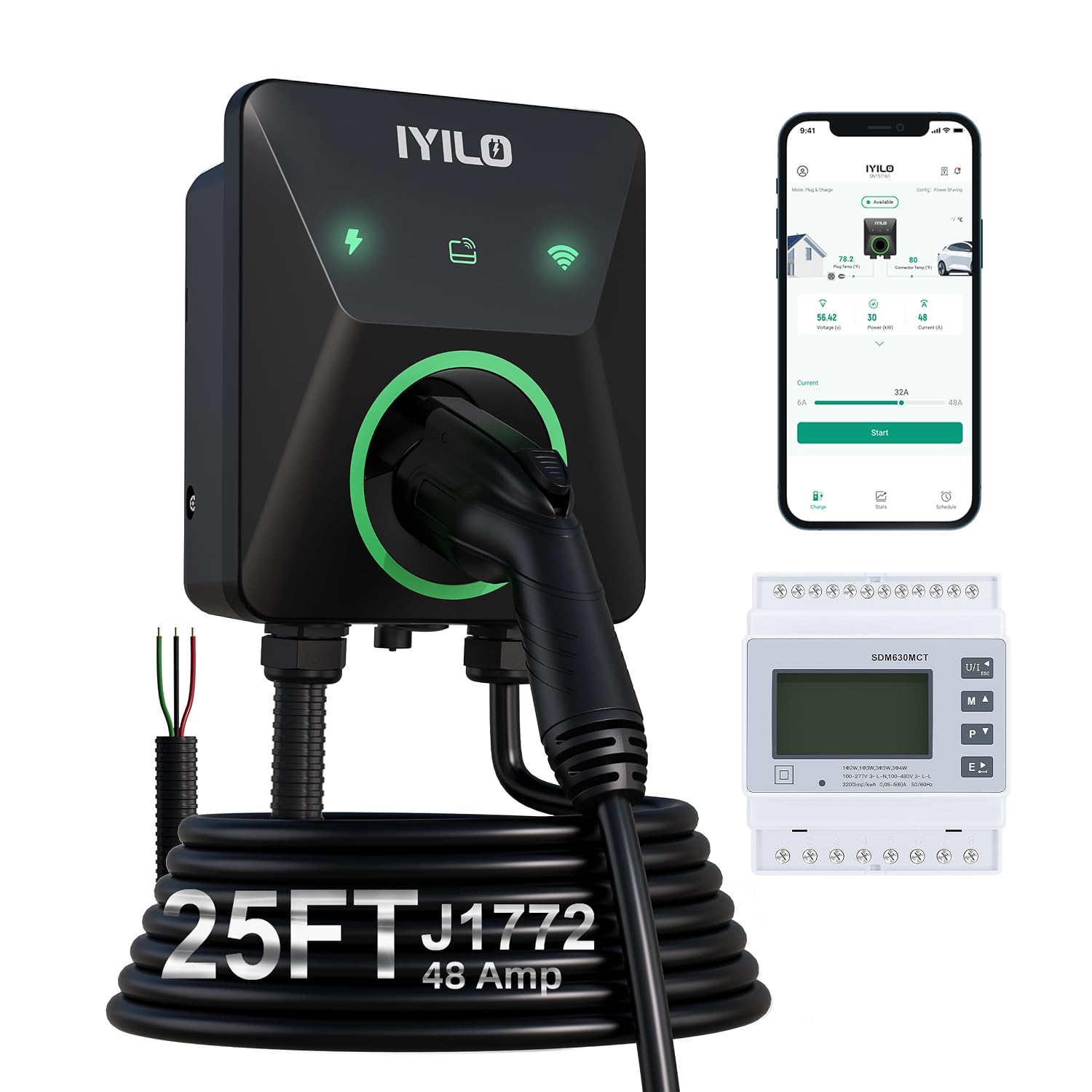

- IYILO 48A Level 2 EV Charger (NEMA 14-50P plug-in)
- Energy Meter with CT clamps and 16ft RS-485 cable
- 2x RFID cards
- Professional installation by Power Blitz Electrical
- ESA permit and inspection (where applicable)
- NEMA 14-50 outlet installation (if required)
Key Features

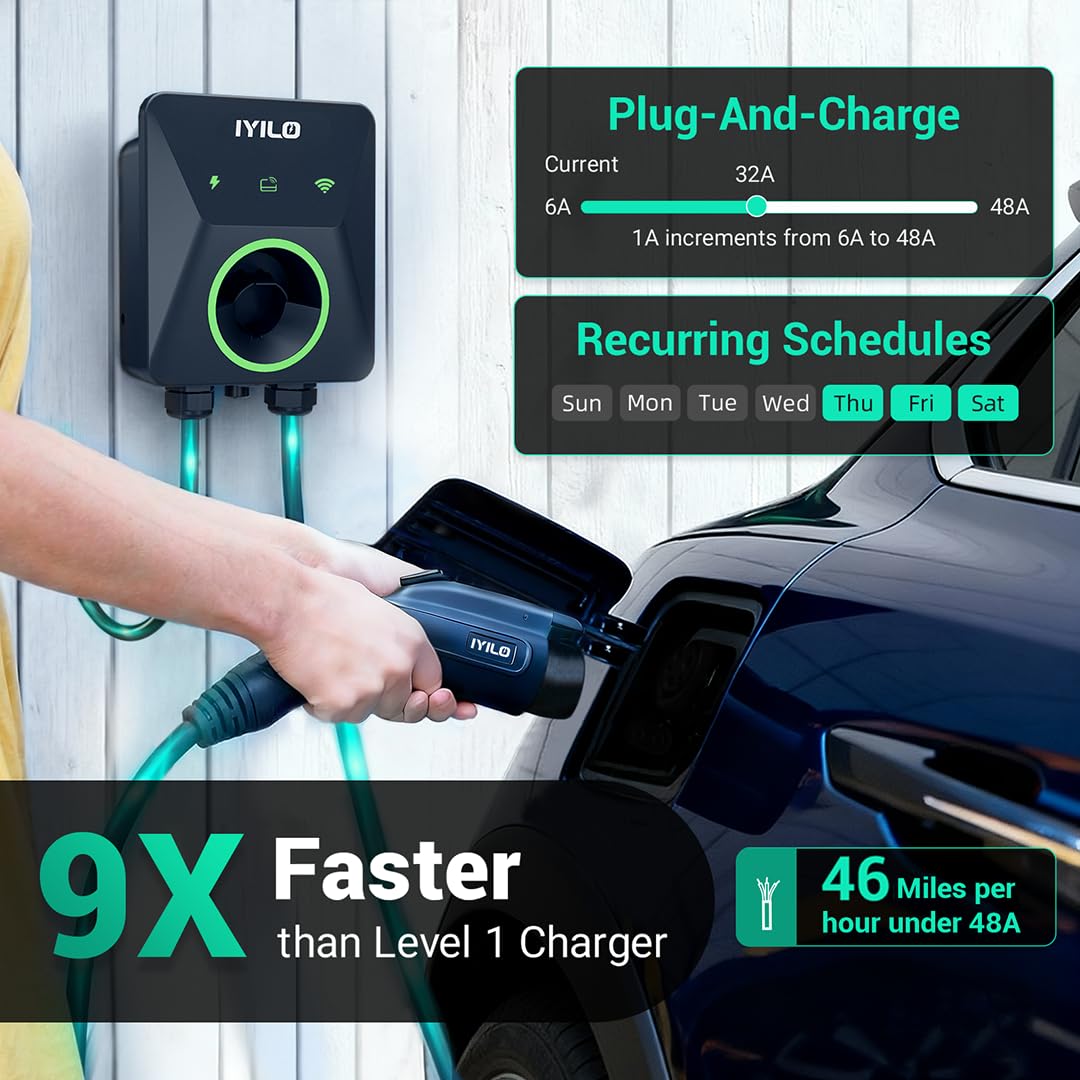

- 48A / 11.5kW output — up to 46 miles of range per hour. Adjustable from 6A to 48A in 1A increments

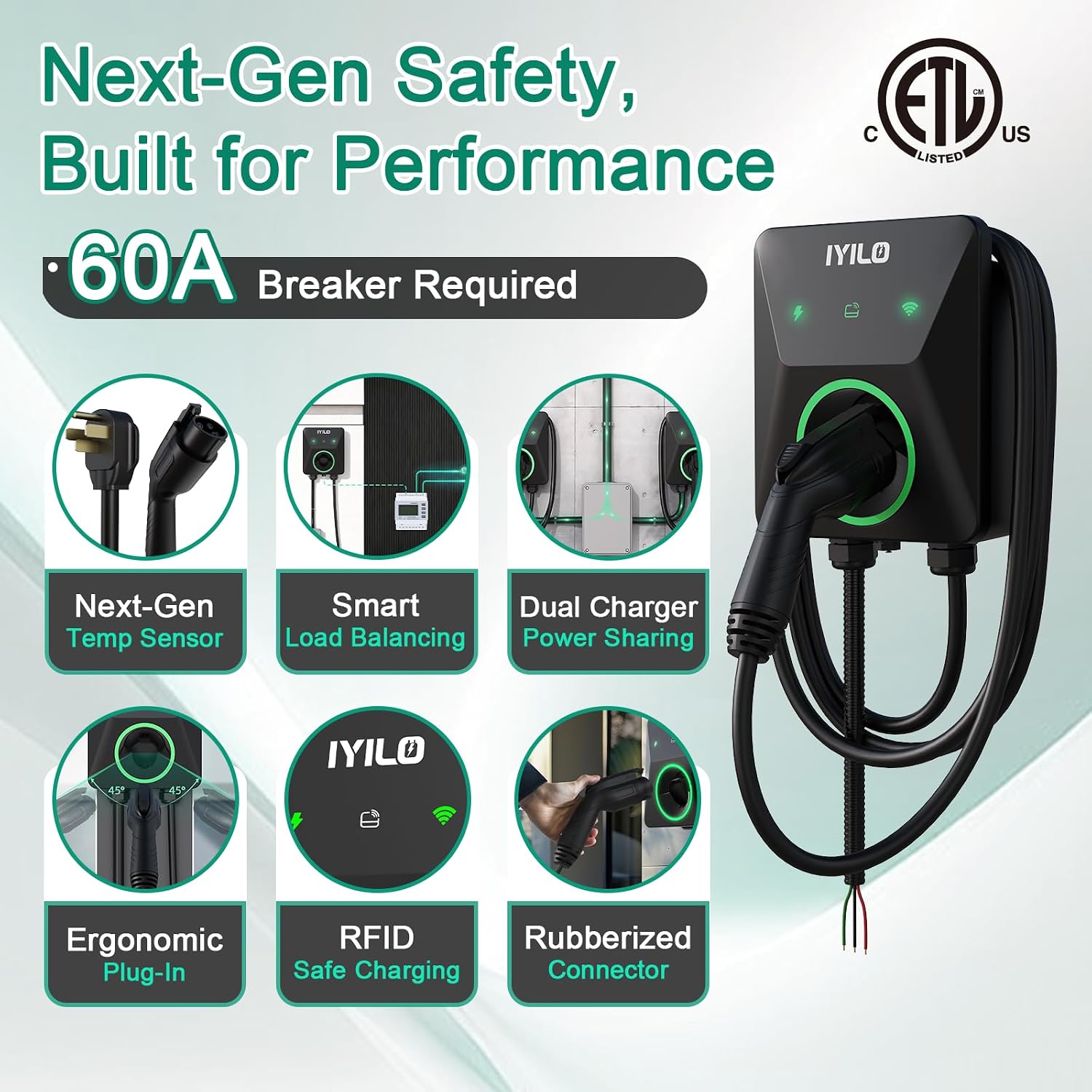

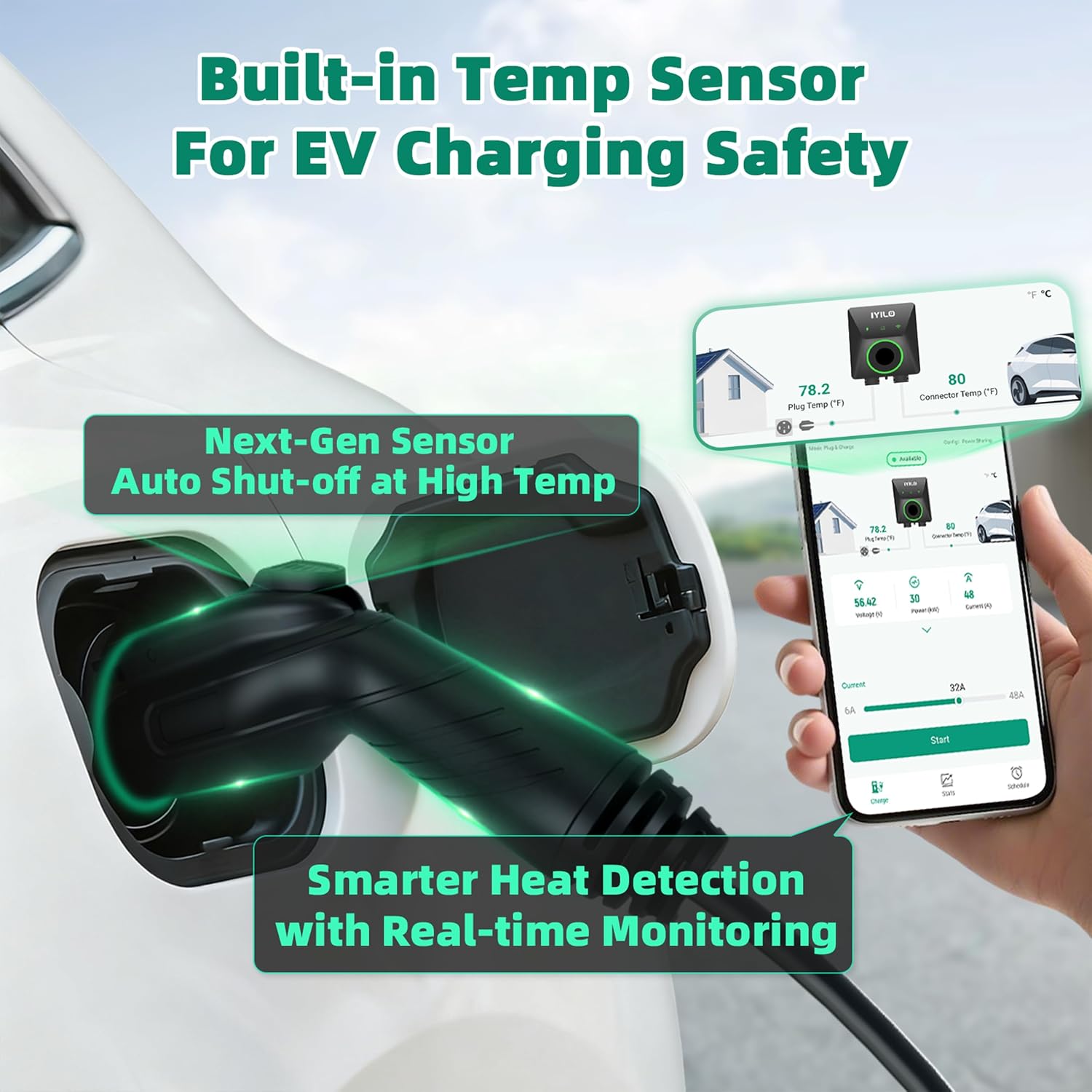

- Dual NTC Temperature Sensors (Exclusive) — monitors both the NEMA plug and the J1772 connector in real time. Automatically reduces power or stops charging if overheating is detected

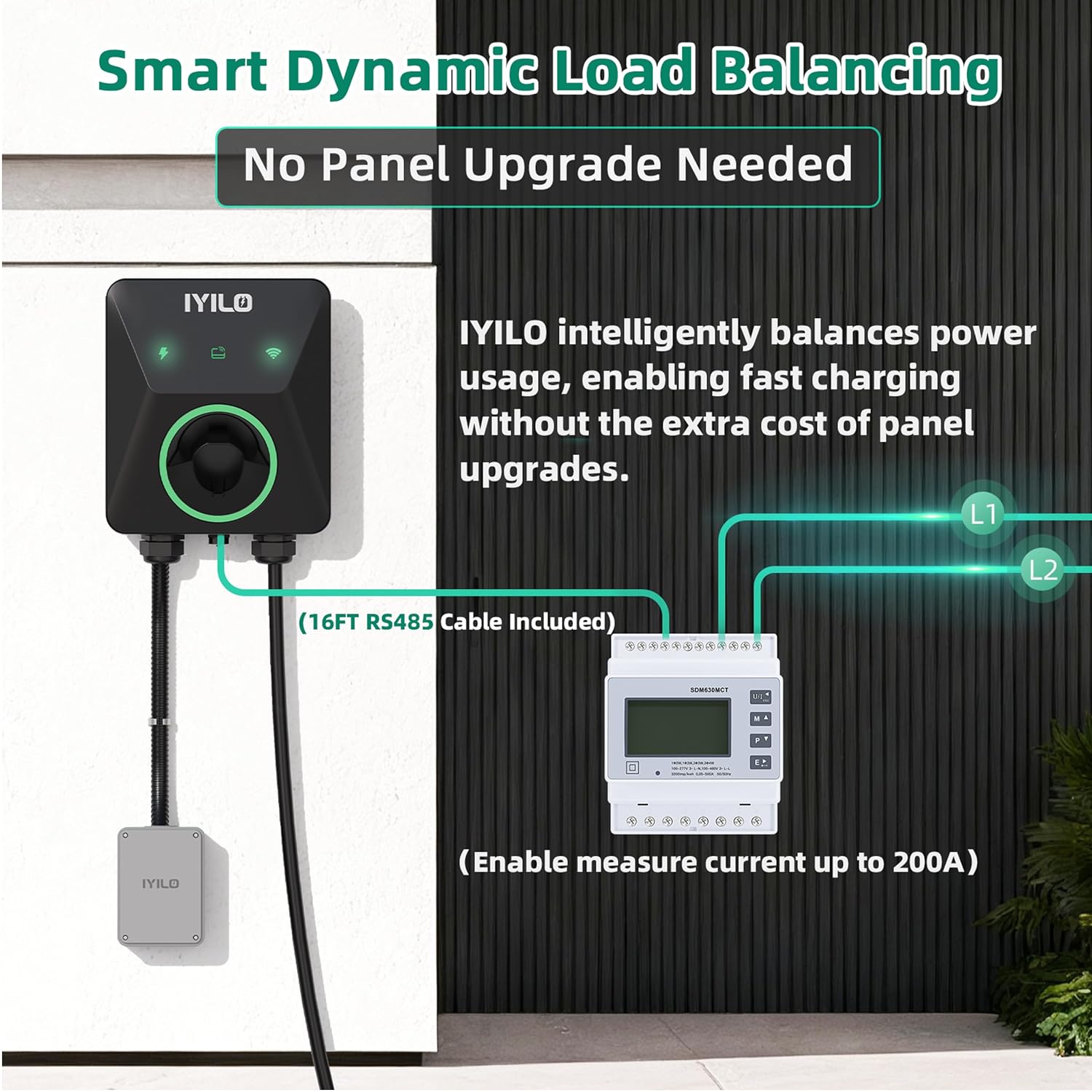

- Smart Energy Meter Included — dynamic load balancing right out of the box. Prevents panel overload without requiring a costly panel upgrade
- Wi-Fi + App Control — set Time-of-Use (TOU) rates, track energy usage and cost, schedule charging, manage multiple user accounts, and receive OTA updates (2.4GHz Wi-Fi)
- RFID Card Access — includes 2 RFID cards for convenient plug-and-charge access control
- NEMA 4 Outdoor Rated — weatherproof for indoor or outdoor installation
- ETL, UL 2594, Energy Star & CSA Certified
- Universal J1772 Compatibility — works with Ford, GM, Hyundai, Kia, Rivian, VW, Audi, Nissan, and all J1772 EVs/PHEVs. Tesla requires J1772 adapter (not included)
- 3-Year Warranty
Compatible Vehicles
Ford Mustang Mach-E, Honda Prologue, Chevy Bolt/Equinox EV, Hyundai IONIQ 5/6, Kia EV6/EV9, Rivian R1T/R1S, Jeep 4xe, VW ID.4, Audi E-tron, Cadillac Lyriq, Nissan Ariya, and all J1772 EVs and PHEVs. Tesla vehicles require a separate J1772 adapter.
Technical Specifications
- Model: IYILO-RA48
- Amperage: 48A (adjustable 6–48A)
- Power Output: 11.5kW
- Voltage: 240V
- Connector: J1772 Level 2
- Plug: NEMA 14-50P
- Breaker Required: 60A dedicated circuit
- Certification: ETL, UL 2594, Energy Star, CSA
- Outdoor Rating: NEMA 4
- Dimensions: 19.81 x 11.18 x 22.1 cm
- Weight: 6.8 kg
Installation area subject to service availability. Power Blitz Electrical serves the GTA, Barrie, Innisfil, York Region, and Simcoe County. Contact us to confirm your service area.
